Viewports in the office

A viewport makes a good meeting-room sign: it reads like paper from across a corridor, it has no glow and no cable, and it runs for months on a charge. This page covers what’s different in an office:

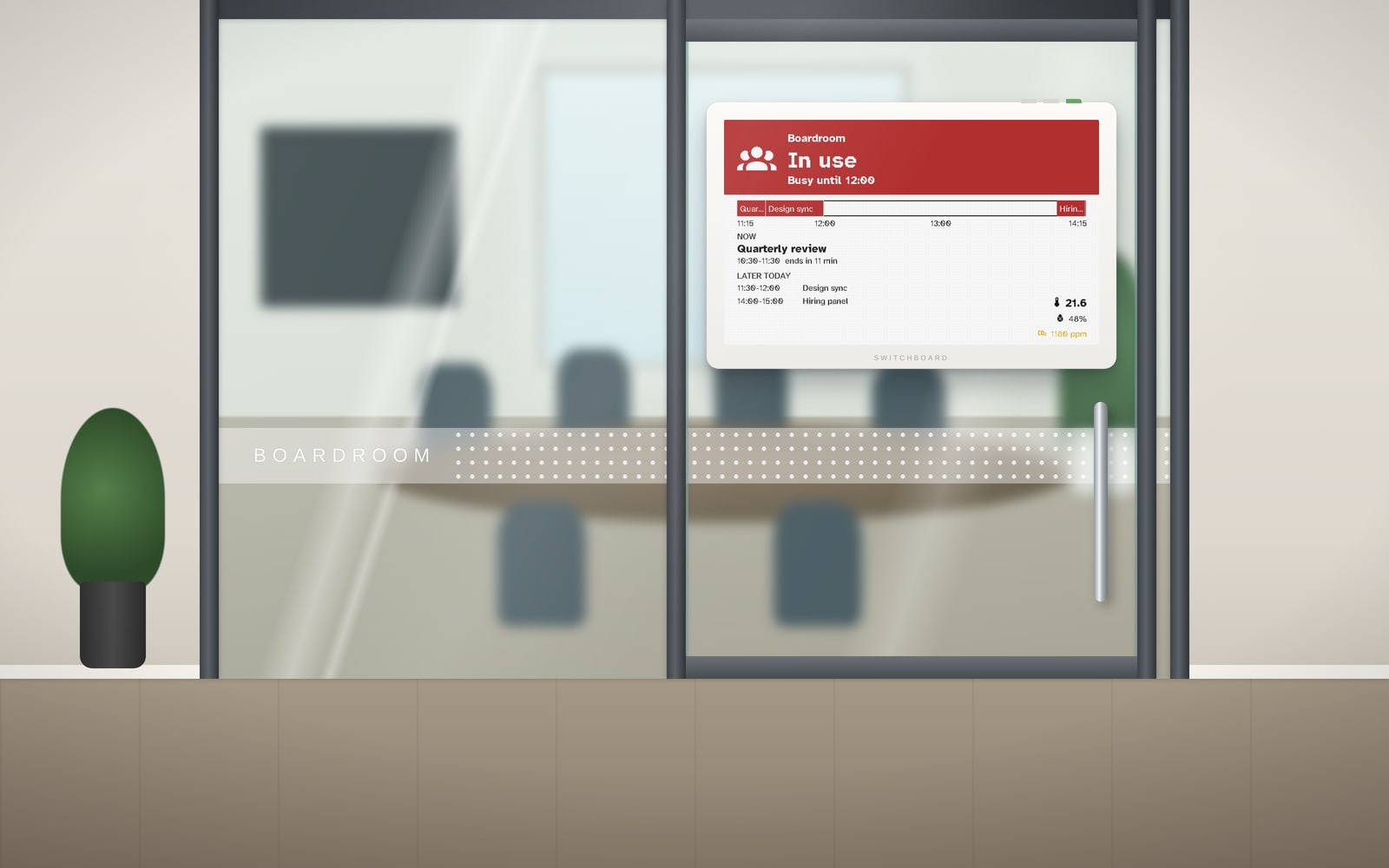

A render of a viewport on a glass meeting-room door
A render: a sign on a meeting room's glass door
A meeting-room sign
A room's sign
The other rooms
Its second screen: the other rooms, free ones first

A sign has two screens:

Press a button to switch to the other rooms; after five minutes the sign goes back to its own room. See Viewport layouts for every option.

Room calendars

Each room needs its own calendar. There are two ways to give it one.

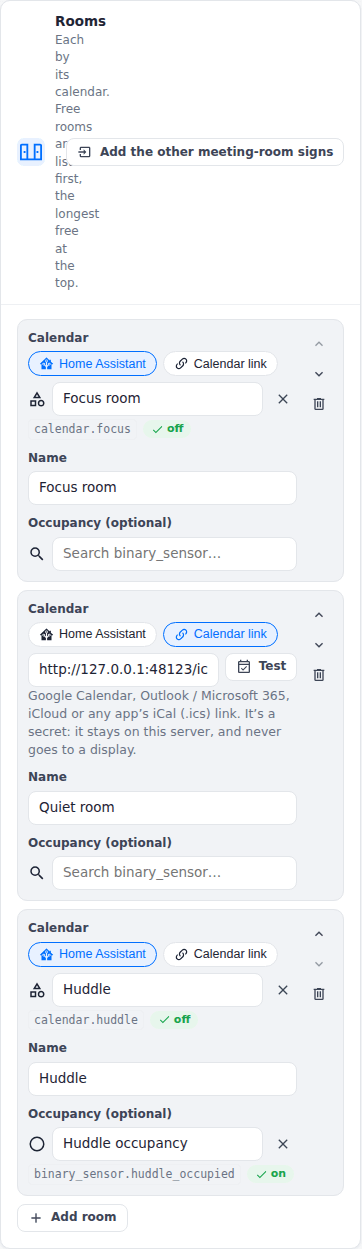

A room on a calendar link
A room on a calendar link, beside two on Home Assistant calendars. Test reads it and says what it found.

A calendar link is a secret: anyone who has it can read the calendar. Switchboard keeps it on the server. Displays never get the link, only what they show, and if a link can’t be read, the server names only its host.

Calendar Where the link is
Google Calendar / Google Workspace In Google Calendar’s settings, pick the room’s calendar, then Integrate calendar → Secret address in iCal format. A room booked as a Workspace resource is listed under Other calendars once you open it. If you don’t see a secret address, your Workspace admin may have turned it off for the organisation.
Microsoft 365 / Outlook In Outlook on the web: Settings → Calendar → Shared calendars → Publish a calendar. Pick the calendar and how much to share, press Publish, and copy the ICS link. For a room mailbox, an Exchange admin can publish it instead (see below).
iCloud In the Calendar app, share the calendar as a Public Calendar and copy its webcal:// link.
Others Fastmail, Proton Calendar, Zoho, Nextcloud and most other apps give an iCal, ICS or webcal:// link when you share or publish a calendar.

Room mailboxes in Microsoft 365. Rooms booked as resources (boardroom@yourcompany.com) have no Outlook settings of their own, so an admin publishes them with Exchange Online PowerShell. This works one room at a time, or in a loop for all of them:

Set-MailboxCalendarFolder -Identity "boardroom@yourcompany.com:\Calendar" -PublishEnabled $true -DetailLevel LimitedDetails
Get-MailboxCalendarFolder -Identity "boardroom@yourcompany.com:\Calendar" | Select-Object PublishedICalUrl

LimitedDetails publishes titles and times. Use AvailabilityOnly to publish only when the room is busy: the sign then shows Busy rather than a title. Your organisation’s sharing policy must allow calendars to be published.

What the sign shows of a meeting is what the link publishes. To keep titles off a sign in a corridor, either publish availability only, or switch on Hide meeting titles in the room’s layout.

How fresh it is. The server reads each link at most every 2 minutes. If a link can’t be read, the server keeps the last good copy. The calendar service itself may take a while to update a published link after a booking changes: Outlook’s published calendars in particular can lag. Book a test meeting to see how long yours takes. If it’s too slow for your rooms, use Home Assistant’s integration for that calendar instead.

Recurring meetings, time zones and cancellations come through as they do in the calendar app. That includes a weekly meeting’s moved and cancelled occurrences, and Outlook’s Windows time-zone names.

When a sign changes

A sign spends almost all its time asleep. It wakes, asks the server what to show, redraws if anything changed (about 20 seconds for a full refresh of the colour panel), and goes back to sleep. In an office, it wakes at these times:

When Why
2 minutes before each change A meeting starting or ending, a room’s Starting soon (10 minutes before by default), or Booked — no one here (with an occupancy sensor). Waking and redrawing take about half a minute, so waking two minutes ahead means the sign has finished by the time it happens.
On the half hour It checks for new and changed bookings, and moves the timeline on. The signs ask the server a few seconds apart, rather than all at once.
Every 4 hours, 7 pm to 7 am and all weekend Quiet hours, so it doesn’t use its battery when nobody’s looking. It still wakes for a meeting booked in the evening.
When someone presses a button For example, just after booking the room. It shows the latest straight away.

For a meeting from 10:00 to 11:00, the sign:

  1. wakes at 9:48 and shows Starting soon by 9:50;
  2. wakes at 9:58 and shows In use by 10:00;
  3. wakes at 10:58 and shows Available by 11:00.

Back-to-back meetings read as one busy block, with no flicker in between.

Why two minutes. Changing exactly on the minute means the sign shows the old status for the half minute it takes to redraw. A display’s clock can also wake it a few seconds early or late. Two minutes covers both. Any more, and a room shows In use while people are still looking for somewhere to sit.

To change it, open the room’s layout and set Change the sign to anything from At the minute itself to 5 minutes before. The other rooms’ screen has its own setting, Change the list.

New bookings show at the next wake: within half an hour, or as soon as a button is pressed. Each wake that redraws the sign costs battery, so it doesn’t refresh more often.

Battery. The Home page learns how fast each sign’s battery goes down in real use, and tells you how many days it has left. The things that wake and redraw it most are:

For signs that need to last longer, turn the timeline off, or refresh every hour. A sign whose screen hasn’t changed doesn’t redraw at all.

Putting up many at once

  1. Set the time zone. With no Home Assistant, choose the office’s in Settings → Clock and time zone. Otherwise the server runs on UTC and every sign’s times are out; the Home page warns about this.
  2. Install the firmware on each display from the browser flasher. Do it once per display, over USB.
  3. Put each one on the Wi-Fi. Each display shows two QR codes; join its hotspot with a phone and pick the network (Setting up). This takes about a minute per display.
    • Displays need a network with a password (WPA2 or WPA3 Personal). They can’t sign in to enterprise Wi-Fi (802.1X). Many offices have an IoT or devices network for this.
    • The network must be able to reach the server. If it’s a separate network (VLAN), multicast usually doesn’t cross to the server’s, so the display can’t find the server by itself. Type the server’s address in Switchboard Server on the setup page, for example 10.20.0.5:45678.
    • Once paired, displays also use every network saved under the server’s Settings → Wi-Fi networks.
  4. Write down each display’s MAC address. A display shows it on its screen while it waits to be approved.
  5. Add the rooms. Under Layouts, press Add many meeting rooms (in the column, under Office) and paste the list of rooms: one per line, columns straight from a spreadsheet.
  6. Hang them up. Each sign starts as soon as it’s approved, or at its next check (every 2 minutes) if it was already waiting.

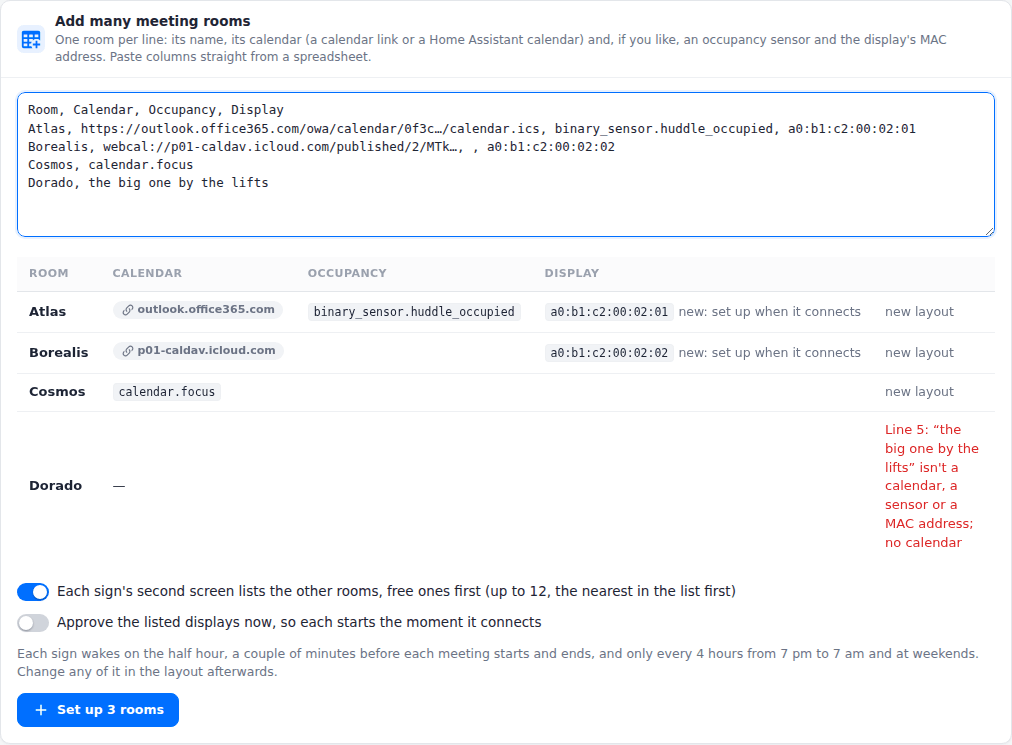

Add many meeting rooms
Layouts → Office → Add many meeting rooms: each line read as you type, and anything wrong with it shown before anything is made.

Each line is a room’s name, then its calendar, then optionally an occupancy sensor and the display’s MAC address. After the name, the columns can be in any order: the server recognises a calendar link, a calendar. entity, a sensor and a MAC address. Separate them with commas, semicolons or tabs; a header row is skipped.

Room, Calendar, Occupancy, Display
Boardroom, https://outlook.office365.com/owa/calendar/…/calendar.ics, binary_sensor.boardroom_occupied, a0:b1:c2:00:01:01
Focus room, webcal://p01-caldav.icloud.com/published/2/…, , a0:b1:c2:00:01:02
Huddle, calendar.huddle

For each room, you get:

Switch on Approve the listed displays now and each one starts the moment it first connects, with no one at the server. Otherwise, approve them when they appear.

Running it again with the same room names updates those rooms’ signs rather than making new ones. That’s the way to change many calendars at once, or to add a room to everyone’s list. It sets each sign’s room and other-rooms screens afresh, with the office timing; any other screens you’ve added to a sign stay.

Displays already waiting. Layouts → Office → Displays waiting lists every display waiting to pair (the Layouts page shows them too, when there are two or more). Give each a name and a layout, and approve them in one go. Each display shows its MAC address on its screen while it waits, so you can tell which is which.

Why a layout per room. Signs that look the same still need a layout each, because each has its own room’s calendar. The room list makes them for you. To change something on every sign, such as the status words, edit the signs’ layouts; to change the rooms, run the list again.
